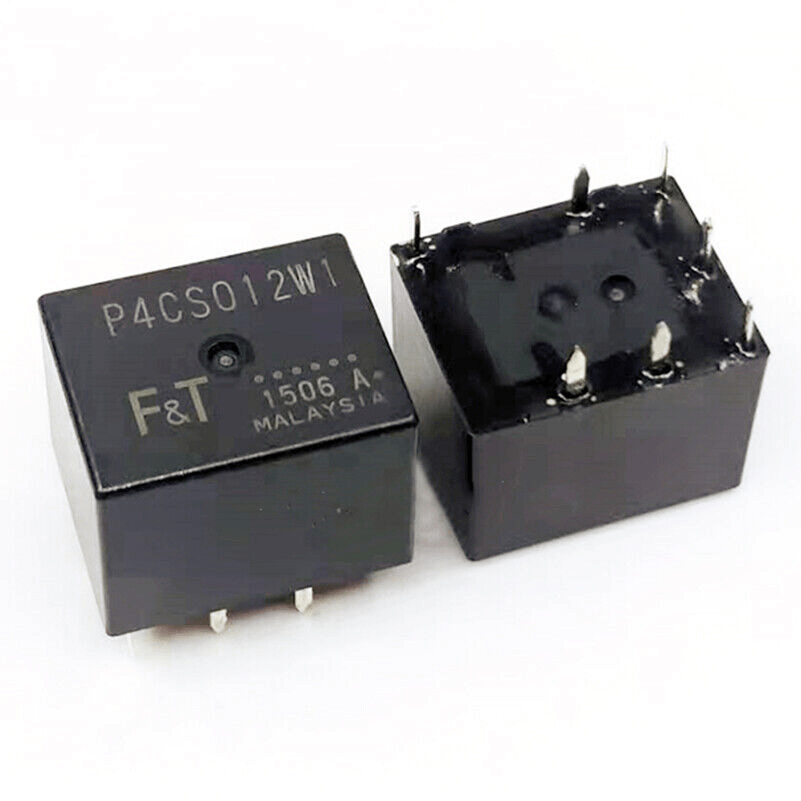

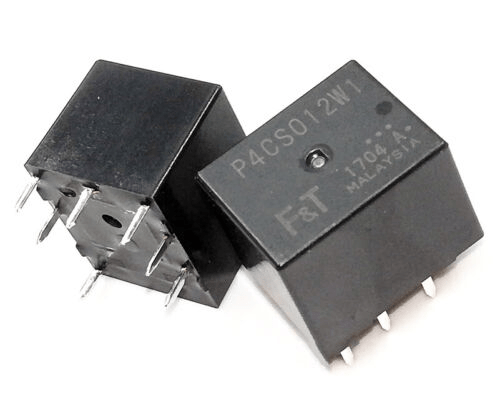

Relé 7 pines P4CN012W1 Automotriz 12V 25 A Vehículos

Relé 7 pines P4CN012W1 Automotriz 12V 25 A Vehículos

ESPECIFICACIONES:

Configuration 1 form C x 2 (H-Bridge)
Material Silver-tin oxide indium
Contact path voltage drop Max. 100mV at 1A, 12VDC
Contact rating 25A at 14VDC (locked motor load)
Max. carrying current 25A/1 hour (25 °C, 100% rated coil voltage at N.O. side,
de-energized at N.C. side)
Max. inrush current 35A (reference)
Max. switching voltage 16VDC (reference)
Max. switching current 35A (reference)
Min. switching load * 6 VDC, 1A (reference
