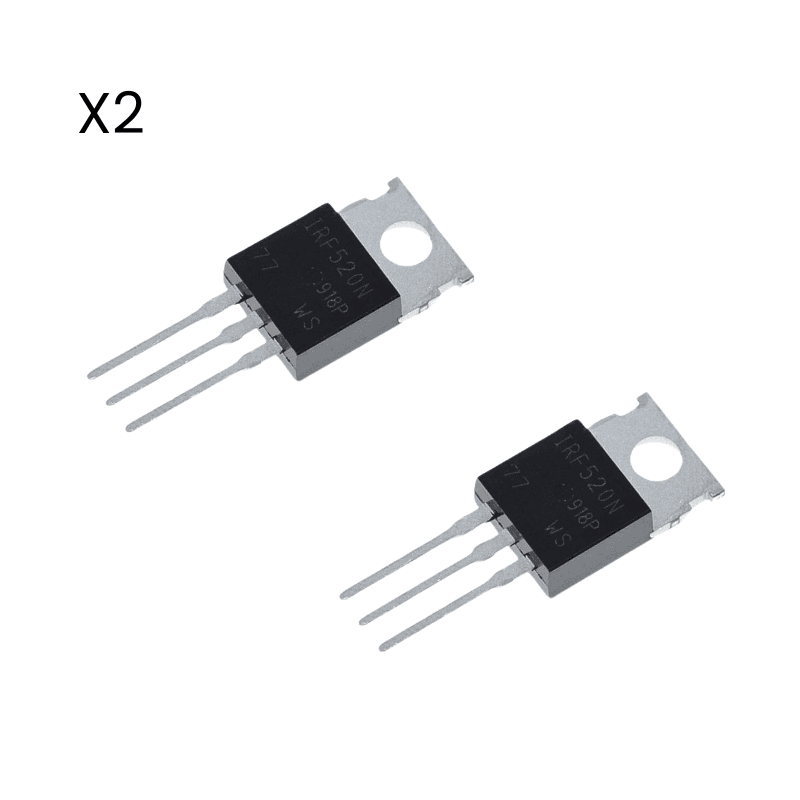

Transistor Power MOSFET IRF520 TO-220 Canal N Pack-2
PRECIO PUBLICADO POR 2 UNIDADES!
=================================================
ESPECIFICACIONES:
Package: TO-220-3
Transistor Polarity: N
Maximum Drain Source Voltage: 100 V
Maximum Continuous Drain Current: 7 A
Maximum Gate Source Voltage ±20V
Power Dissipation: 60 W
Number of Elements per Chip: 1
Maximum Forward Voltage: 100VDC
Output Power: 60W
Peak Non-Repetitive Surge Current: 40A
Maximum Reverse Current: 250uA
Channel Mode: N-Channel Enhancement
Peak Reverse Recovery Time: 75ns
Channel Type: N
Repetitive Peak Reverse Voltage: 100VDC
